The Phoenix range of inverters is suitable for the widest range of applications. Designed to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.
Proven Reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High Start Up Power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO Mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.
VE.Direct Communication Port
The VE.Direct Communication Port can be connected to:
A computer (VE.Direct to USB interface cable required)
Apple and Android Smartphones, tablets, Macbook's and other devices (VE.Direct Bluetooth Smart Dongle required)
Fully Configurable:
Low battery alarm trip and reset levels
Low battery voltage cut-off and restart levels
Dynamic cut-off: load dependent cut-off level
Output voltage: 210-245V
Frequency: 50 or 60Hz
Eco mode On/Off and Eco mode sense level
Monitoring:
In and Output voltage
Percentage load
Alarms
Lightweight and compact
Problem-free power
High start-up power
ECO Mode
LED Diagnosis
Proven reliability

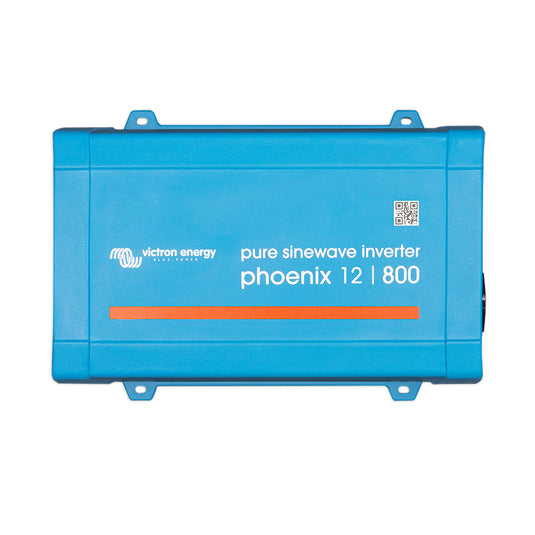

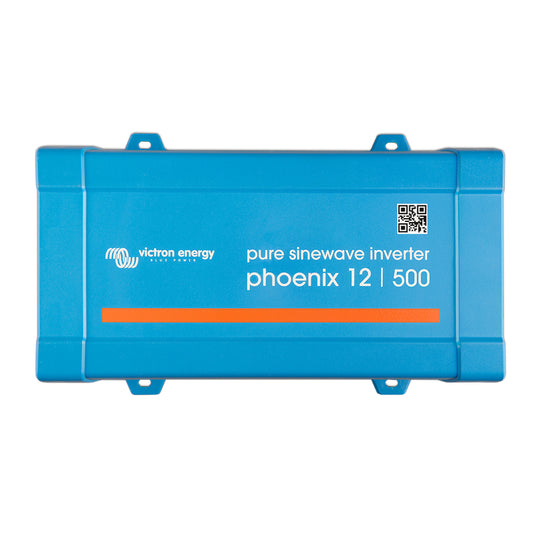

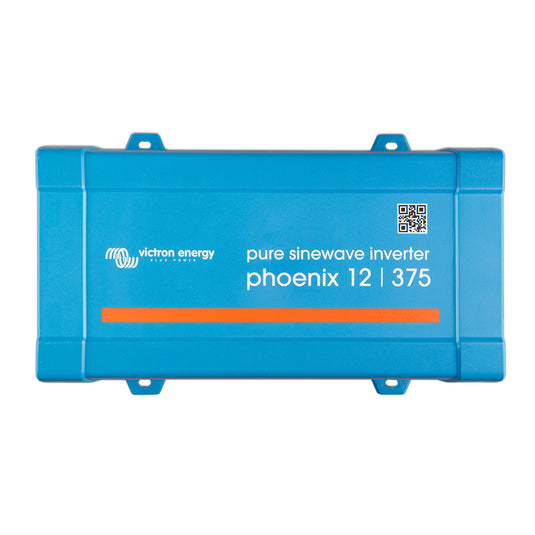

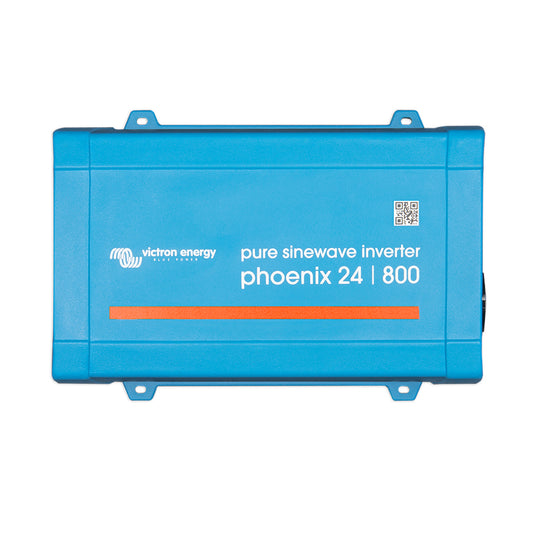

Model 12-375 12/500
12/800
24/800 12/1200 24/1200
Continuous Power
375VA
500VA
800VA
800VA 1200VA 1200VA
Continuous Power 300W
400W
650W
650W 1000W 1000W
Peak Power
700W
900W
1500W
1500W 2200W 2200W
Output Voltage 230V 230V 230V 230V 230V 230V
Input Voltage Range
9.2-17V
9.2-17V
9.2-17V
18.4-34V 9.2-17V 18.4-34V
DC Low Power Shutdown
9.3V
9.3V
9.3V
18.6V 9.3V 18.6V
DC Low Power Restart
10.9V
10.9V
10.9V
21.8V 10.9V 21.8V
Battery Charged Detect 14V 14V 14V 28V 14V 28V
Max Efficiency 89% 90% 90% 90% 91% 91%
Weight 3Kg 3.9Kg 5.5Kg 5.5Kg 7.4Kg 7.4Kg
Dimensions (mm) H86 x W165 x D260 H86 x W172 x D275 H105 x 230 x 325 H105 x W216 x D305 H117 x W232 x D362 H117 x W232 x D327
5 Year Warranty
Please Note: Any work on Voltages exceeding 50V, must be done by a registered electrician.
*Please scroll to the right to see the rest of the model specification
Description
The Phoenix range of inverters is suitable for the widest range of applications. Designed to produce a true sine wave inverter with optimised efficiency but without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem free, to any load.
Proven Reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High Start Up Power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.
ECO Mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.
VE.Direct Communication Port
The VE.Direct Communication Port can be connected to:
A computer (VE.Direct to USB interface cable required)
Apple and Android Smartphones, tablets, Macbook's and other devices (VE.Direct Bluetooth Smart Dongle required)
Fully Configurable:
Low battery alarm trip and reset levels
Low battery voltage cut-off and restart levels
Dynamic cut-off: load dependent cut-off level
Output voltage: 210-245V
Frequency: 50 or 60Hz
Eco mode On/Off and Eco mode sense level
Monitoring:
In and Output voltage
Percentage load
Alarms
Features
Lightweight and compact
Problem-free power
High start-up power
ECO Mode
LED Diagnosis
Proven reliability
Specifications
Model 12-375 12/500
12/800
24/800 12/1200 24/1200
Continuous Power
375VA
500VA
800VA
800VA 1200VA 1200VA
Continuous Power 300W
400W
650W
650W 1000W 1000W
Peak Power
700W
900W
1500W
1500W 2200W 2200W
Output Voltage 230V 230V 230V 230V 230V 230V
Input Voltage Range
9.2-17V
9.2-17V
9.2-17V
18.4-34V 9.2-17V 18.4-34V
DC Low Power Shutdown
9.3V
9.3V
9.3V
18.6V 9.3V 18.6V
DC Low Power Restart
10.9V
10.9V
10.9V
21.8V 10.9V 21.8V
Battery Charged Detect 14V 14V 14V 28V 14V 28V
Max Efficiency 89% 90% 90% 90% 91% 91%
Weight 3Kg 3.9Kg 5.5Kg 5.5Kg 7.4Kg 7.4Kg
Dimensions (mm) H86 x W165 x D260 H86 x W172 x D275 H105 x 230 x 325 H105 x W216 x D305 H117 x W232 x D362 H117 x W232 x D327
5 Year Warranty
Please Note: Any work on Voltages exceeding 50V, must be done by a registered electrician.
*Please scroll to the right to see the rest of the model specification
